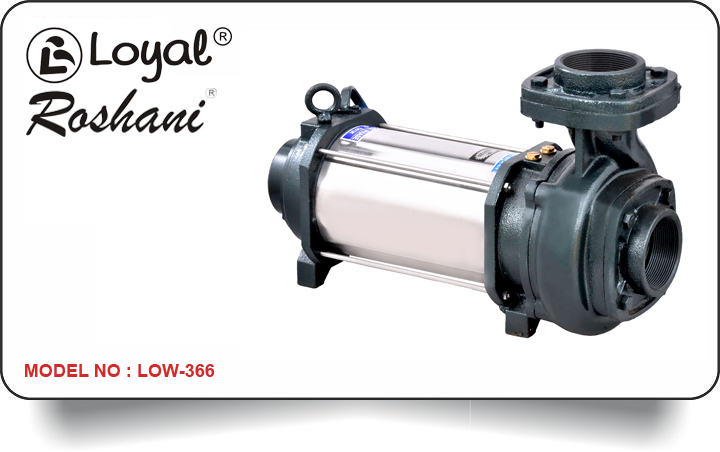

Openwell Submersible Pump (Three phase 380V)
•Horizontal open well submersible pump set these single stage Centrifugal pump are ideally suitable for open well where there is wide fluctuation in water level. This works underwater & it rests at the well hence suction & priming problems do not arise. Prime mover motor is of wet type. Water lubricated, water cooled rewind able motor. The stator is wound with special water proof bi-axially oriented synthetic film insulated winding wires.
MOTOR.
•Water filled submersible induction motor.
•S.S. 202 Grade motor body
•S.S. 431 Grade motor shaft
•Winding wire is tapping type having high resisting insulating capacity up to 5000 v as per BIS Standard.
•Stamping is made of CRNO M-45 grade sheet having high silicon percentage which minimum the iron losses .
•Motor bush it is made of LTB-4 as per BIS Standard.
PUMP
-Rigid cast iron impellor & volute casing provide good efficiency & long life.
-Compatible with low friction flexible hose pipes.
APPLICATION
-Sprinkler & drip irrigation
-Pumping from sump for high rise building & industries
-River & canal lift irrigation
-Residential irrigation
Technical details
| Type | Model | H.P. | PIPE SIZE | RPM | HEAD IN FEET | Phase |
| Openwell Submersible Pump | LOW-366 | 3 | 65x65 | 2880 | 65 | 3.Phase 380V |
Plus point
•An ISI mark products.
•30% lower power consumption.
•Excellent performance even at low voltage.
•High efficiency & low electricity cost.
•Easy availability of spare parts.
•Noiseless, easy to install, compact, requires minimum space.
